9  MIKE IO

This section introduces MIKE IO, a fundamental DHI Python package. You’ll learn what MIKE IO is, the scope of its usage in this course, how to install it, and grasp its basic concepts. We provide a brief overview here; the next section delves into more detail.

9.1 What is MIKE IO?

MIKE IO is an open-source Python package developed by DHI, which you might recall from Module 1. It empowers modelers with full flexibility by bridging the gap between various MIKE file formats and Scientific Python’s rich and powerful package ecosystem.

9.2 Usage in course

For MIKE+ modelers, a key file format is dfs0, DHI’s standard for tabular time series data. You’re likely familiar with dfs0 files for storing data such as rainfall, water levels, or discharge.

This course primarily focuses on the dfs0 functionality of MIKE IO, since it’s most relevant for handling time series data in MIKE+. While MIKE IO also supports other formats like dfs2, dfsu, and mesh files, they are intermediate topics beyond the scope of this introductory course.

It’s important to note that this course primarily focuses on using MIKE IO to get time series data into Pandas DataFrames. This approach is chosen to:

  • Reduce the initial learning curve for Python beginners by leveraging Pandas skills.
  • Provide a method that is sufficiently powerful for most common time series tasks in MIKE+ modelling.

MIKE IO itself has a lot of other useful functionalities, especially for working directly with Dataset and DataArray objects, and for handling multidimensional data (like dfs2 or dfsu files). We encourage you to explore the official MIKE IO documentation after mastering the basics of Pandas.

9.3 Installation

Install MIKE IO with:

uv pip install mikeio
Tip

Always check the official MIKE IO’s documentation for the most up-to-date installation instructions and information on the latest versions.

9.4 Quick glance

Let’s take a quick look at some core MIKE IO objects and how to access them. When you read a dfs0 file, MIKE IO typically returns a Dataset object.

import mikeio

ds = mikeio.read("data/sirius_idf_rainfall.dfs0")
Note

Example dfs0 is from MIKE+ Example Project: Sirius.

This Dataset object, ds, holds the data and metadata. You can easily access its contents, such as the items:

ds.items

The time axis is a Pandas DatetimeIndex, shared between all items:

ds.time

To access data for a specific item, you can select it from the Dataset, which returns a DataArray object:

da = ds[0] # Access the first item from ds.items

9.5 Key Concepts

Understanding a few key concepts in MIKE IO will be helpful as you progress through this course:

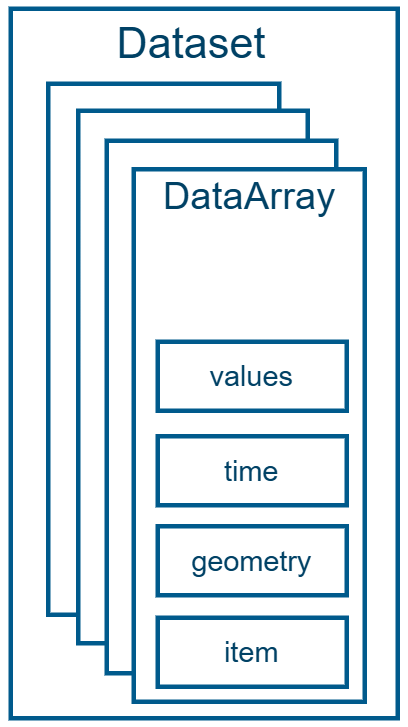

Dataset
A Dataset is a collection of one or more DataArray objects that share the same time axis. Think of it as the entire content of a dfs0 file.
DataArray
A DataArray holds the data for a single item, including its time series values and associated metadata. This is comparable to a single column in a dfs0 file when viewed in a tabular format.
Items
Each DataArray within a Dataset represents an “item.” An item is characterized by its name, type (e.g., water level, discharge), unit (e.g., meters, m\(^3\)/s), and value type (e.g., instantaneous, accumulated), which are crucial for correct data interpretation in MIKE software.

9.6 Additional reading (optional)

The following sections of MIKE IO’s documentation are particularly relevant for this course:
