Dfs2

A dfs2 file is also called a grid series file. Values in a dfs2 file are ‘element based’, i.e. values are defined in the centre of each grid cell.

import mikeio
ds = mikeio.read("../data/gebco_sound.dfs2")
ds
<mikeio.Dataset>
dims: (time:1, y:264, x:216)
time: 2020-05-15 11:04:52 (time-invariant)
geometry: Grid2D (ny=264, nx=216)
items:
  0:  Elevation <Total Water Depth> (meter)

Subset in space

The most convenient way to subset in space is to use the sel method, which returns a new (smaller) dataset, which can be further processed or written to disk using the to_dfs method.

ds.geometry
<mikeio.Grid2D>
x: [12.2, 12.21, ..., 13.1] (nx=216, dx=0.004167)
y: [55.2, 55.21, ..., 56.3] (ny=264, dy=0.004167)
projection: LONG/LAT
ds_aoi = ds.sel(x=slice(12.5, 13.0), y=slice(55.5, 56.0))
ds_aoi.geometry
<mikeio.Grid2D>
x: [12.5, 12.5, ..., 12.99] (nx=120, dx=0.004167)
y: [55.5, 55.5, ..., 55.99] (ny=120, dy=0.004167)
projection: LONG/LAT

In order to specify an open-ended subset (i.e. where the end of the subset is the end of the domain), use None as the end of the slice.

ds.sel(x=slice(None, 13.0))
<mikeio.Dataset>
dims: (time:1, y:264, x:191)
time: 2020-05-15 11:04:52 (time-invariant)
geometry: Grid2D (ny=264, nx=191)
items:
  0:  Elevation <Total Water Depth> (meter)

Grid2D

The spatial information is available in the geometry attribute (accessible from Dfs2, Dataset, and DataArray), which in the case of a dfs2 file is a Grid2D geometry.

ds.geometry
<mikeio.Grid2D>
x: [12.2, 12.21, ..., 13.1] (nx=216, dx=0.004167)
y: [55.2, 55.21, ..., 56.3] (ny=264, dy=0.004167)
projection: LONG/LAT

Grid2D’s primary properties and methods are:

  • x
  • nx
  • dx
  • y
  • ny
  • dy
  • origin
  • projection
  • xy
  • bbox
  • contains()
  • find_index()
  • isel()
  • to_mesh()

See API specification for details.

Extract data at a point

Use interp() to extract values at a specific coordinate:

da = ds["Elevation"]
da_point = da.interp(x=12.74792, y=55.865)
da_point.values
array([-42.69764539])

Creating a dfs2 file

To create a dfs2 file from scratch:

  1. Create a Grid2D geometry
  2. Create a NumPy array with the correct shape
  3. Wrap it in a DataArray
  4. Write to file
Important

Data arrays must have shape (n_timesteps, ny, nx) for time-varying data or (ny, nx) for static data. The y-axis must increase south-to-north and the x-axis west-to-east, matching the CF conventions.

For complete examples of converting external data to dfs2, see Dfs2-Bathymetry (NetCDF → static dfs2) and Dfs2-GFS (NetCDF → multi-item time-varying dfs2).

Geographic coordinates

import numpy as np
import pandas as pd

grid = mikeio.Grid2D(
    x0=12.0, dx=1.0, nx=3,
    y0=55.0, dy=1.0, ny=4,
    projection="LONG/LAT",
)
grid
<mikeio.Grid2D>
x: [12, 13, 14] (nx=3, dx=1)
y: [55, 56, ..., 58] (ny=4, dy=1)
projection: LONG/LAT
data = np.arange(24, dtype=float).reshape(2, 4, 3)  # (time, y, x)
data.shape
(2, 4, 3)
da = mikeio.DataArray(
    data=data,
    geometry=grid,
    time=pd.date_range("2020", periods=2, freq="D"),
    item=mikeio.ItemInfo("Elevation", mikeio.EUMType.Elevation),
)
da
<mikeio.DataArray>
name: Elevation
dims: (time:2, y:4, x:3)
time: 2020-01-01 00:00:00 - 2020-01-02 00:00:00 (2 records)
geometry: Grid2D (ny=4, nx=3)
da.to_dfs("example_geo.dfs2")

Projected coordinates

pgrid = mikeio.Grid2D(
    x0=337100.0, dx=10000.0, nx=3,
    y0=6122900.0, dy=10000.0, ny=4,
    projection="UTM-32",
)

pda = mikeio.DataArray(
    data=data,
    geometry=pgrid,
    time=pd.date_range("2020", periods=2, freq="D"),
    item=mikeio.ItemInfo("Elevation", mikeio.EUMType.Elevation),
)

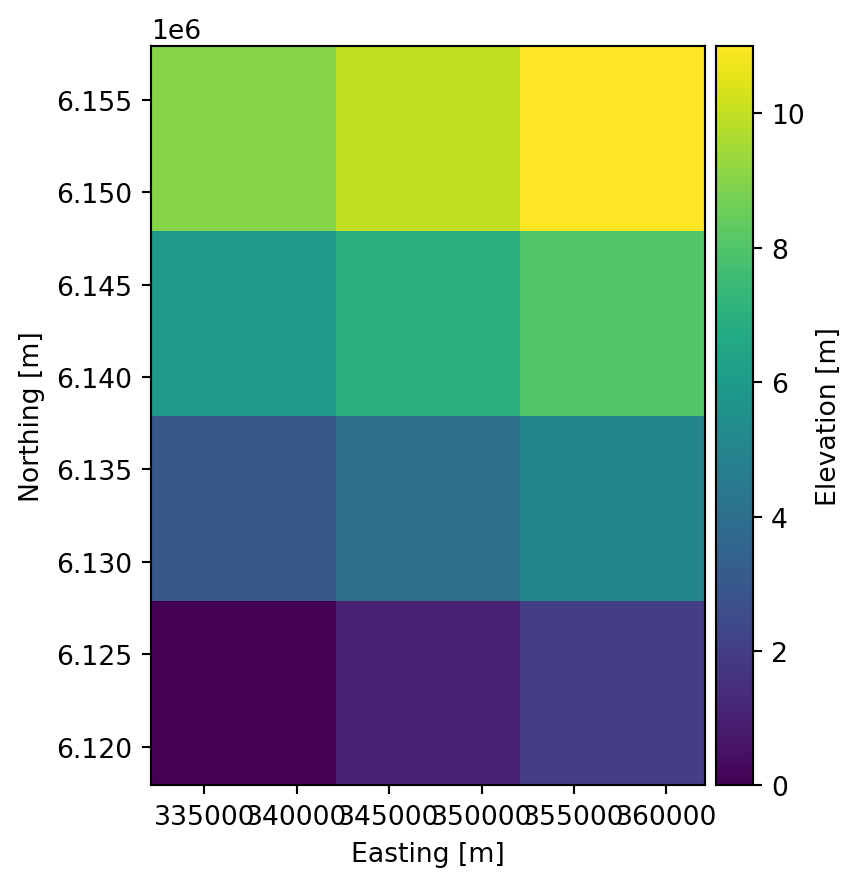

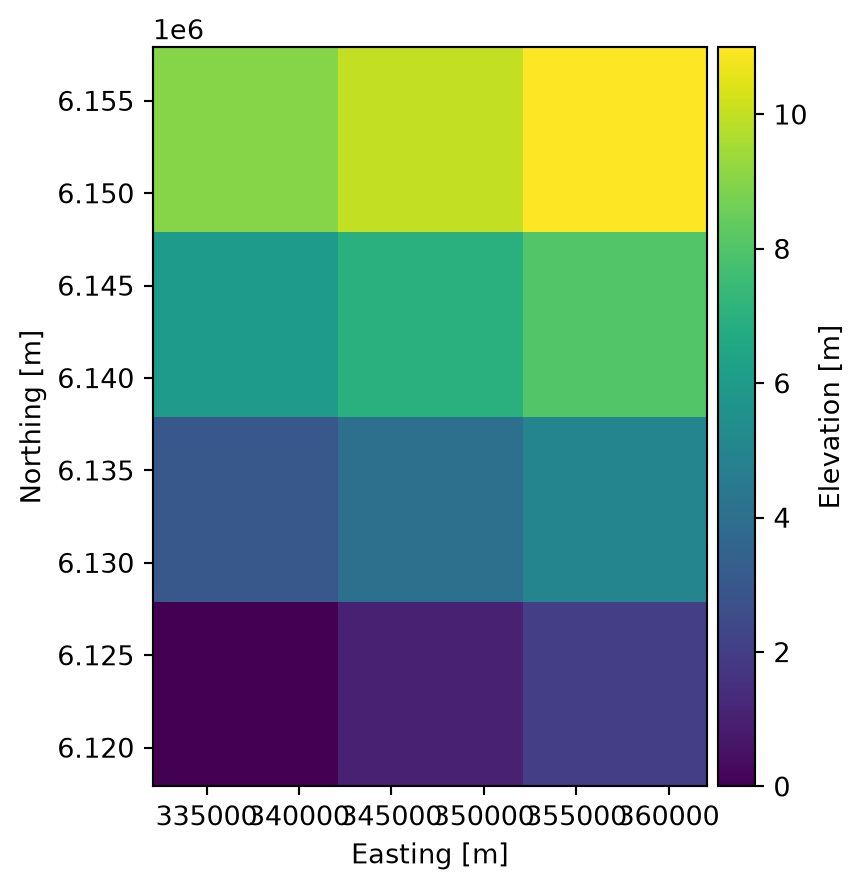

pda.plot();

Cleanup:

import os
os.remove("example_geo.dfs2")
