Networks

Extra dependencies required

Network support depends on libraries that are not installed by default, e.g. networkx. You can install them alongside modelskill using the networks extra:

uv pip install modelskill[networks]

uv add modelskill[networks]

A Network represents a 1D pipe or river network as a directed graph: nodes hold timeseries data (e.g. water level at a junction) and reaches carry the topology and reach length between them. Break points along a reach (e.g. cross-section chainages) are supported as observation locations too.

The typical workflow is:

Network  →  NetworkModelResult  →  match()  →  Comparer

Building a Network

You can build a Network object by loading it from a supported network result file. Reading these files relies on mikeio1d, so install the networks dependency group first.

There is one constructor per product that writes the file:

Constructor	Extensions	Product
`Network.from_mike`	`.res1d`, `.res11`	MIKE 1D, MIKE 11
`Network.from_epanet`	`.res`, plus optional `.resx` and `.inp`	EPANET

The remaining formats mikeio1d can open cannot be turned into a Network, and say so when you try:

Extension	Why not
`.out` (SWMM)	The reach connectivity is not in the `.out` at all — it lives in the companion `.inp` input file, which modelskill does not read yet (#689).
`.resx`	Not a network on its own. It holds extra results for the network defined in the sibling `.res`, so pass it as `from_epanet(res, resx=...)` instead.
`.prf`, `.crf`, `.xrf` (MOUSE), `.whr` (Water Hammer)	No test fixture exists for these formats, so support cannot be verified. Open an issue if you need one.

From a network result file

The quickest way to get a Network is from the path to a result file:

from modelskill.network import Network

network = Network.from_mike(path_to_res1d)
network

<Network>
Reaches: 118
Nodes: 259
Quantities: ['WaterLevel', 'Discharge']
Time: 1994-08-07 16:35:00 - 1994-08-07 18:35:00

or a mikeio1d.Res1D that has already been opened:

from mikeio1d import Res1D

res = Res1D(path_to_res1d)
network = Network.from_mike(res)

MIKE 11 files work the same way. Note that MIKE 11 keeps its timeseries on reach gridpoints rather than on nodes, so the nodes of such a network carry no data of their own:

Network.from_mike(path_to_res11)

<Network>
Reaches: 3
Nodes: 71
Quantities: ['Discharge', 'Water Level']
Time: 1989-07-27 00:00:00 - 1989-08-14 12:00:00

EPANET results use from_epanet:

Network.from_epanet(path_to_epanet)

<Network>
Reaches: 13
Nodes: 11
Quantities: ['Demand', 'Head', 'Pressure', 'WaterQuality']
Time: 2022-10-13 00:00:00 - 2022-10-14 00:00:00

EPANET companion files

An EPANET run writes more than one file, and the .res is not the whole picture:

File	What it adds
`.res`	The network and its main timeseries. Required.
`.resx`	Extra results — tank volume and pump energy. Merged onto matching nodes.
`.inp`	The model input. The only one of the three carrying reach lengths.

Pass the companions alongside the result file to get a fuller network:

network_epanet = Network.from_epanet(
    path_to_epanet,
    resx=path_to_epanet_resx,
    inp=path_to_epanet_inp,
)
network_epanet

<Network>
Reaches: 13
Nodes: 11
Quantities: ['Demand', 'Head', 'Pressure', 'WaterQuality', 'Volume', 'Volume Percentage']
Time: 2022-10-13 00:00:00 - 2022-10-14 00:00:00

Volume and Volume Percentage come from the .resx, and the reach lengths from the .inp:

sorted(
    d["length"]
    for *_, d in network_epanet.graph.edges(data=True)
    if d["length"] is not None
)

EPANET reach geometry is limited

EPANET is a link-node model, and mikeio1d reports no length and a single synthetic gridpoint for each reach. So for an EPANET network:

without inp=, every edge of network.graph has length=None. A length-weighted networkx call then fails rather than returning a meaningless number — shortest-path treats the edge as unreachable, and anything that sums the weights raises TypeError. The attribute is always present, since networkx defaults a missing weight to 1. With inp=, only pumps and valves stay None, since [PIPES] is the one section carrying lengths
reaches have no breakpoints, so a ReachObservation cannot be matched — use NodeObservation instead
find(reach=..., distance=<number>) never resolves; only distance="start" and distance="end" work

For the same reason, resx= merges node quantities only. Its reach-level quantities — pump energy, efficiency and costs — have no breakpoint to live on, which is tracked in #680.

Node timeseries, to_dataframe(), to_dataset(), find(node=...) and recall() are unaffected.

A MIKE 1D network contains multiple levels that are unified into a generic network structure as depicted in the image below. The image introduces concepts like find, recall and boundary which are explained in the following sections.

How a Res1D file maps to a Network object. Reaches and nodes are re-indexed as integers; boundary nodes expose `find()`/`recall()` round-trip lookups.

Selective loading

Large result files can contain thousands of nodes and gridpoints. Loading all of that data into memory is slow and may cause memory issues — especially when you only need the timeseries at a handful of nodes where observations exist.

Both constructors accept the same two optional arguments to restrict what gets loaded:

Argument	Type	Effect
`nodes`	`None` \| `str` \| `list[str]`	Control which nodes have timeseries data loaded. `None` (default) loads all nodes; `[]` skips all node data; a name or list loads only those nodes.
`reaches`	`None` \| `str` \| `list[str]`	Control which reaches have intermediate gridpoint data populated. `None` (default) loads everything; `[]` skips all gridpoints; a name or list of names loads only those reaches.

Note

Selective loading only controls which timeseries are held in memory. The full network topology (nodes, reaches, lengths) is always constructed so that find(), recall(), and graph algorithms still work on the complete network.

The most memory-efficient setup — useful when you only care about specific junction nodes — is to pass the node IDs you need and skip all intermediate gridpoints with reaches=[]:

network_subset = Network.from_mike(
    path_to_res1d,
    nodes=["78", "46"],
    reaches=[],
)
network_subset

<Network>
Reaches: 118
Nodes: 259
Quantities: ['WaterLevel']
Time: 1994-08-07 16:35:00 - 1994-08-07 18:35:00

If you also need gridpoint data along a particular reach, pass its name (or a list of names):

network_subset = Network.from_mike(
    path_to_res1d,
    nodes=["78", "46"],
    reaches=["94l1"],
)
network_subset

<Network>
Reaches: 118
Nodes: 259
Quantities: ['WaterLevel', 'Discharge']
Time: 1994-08-07 16:35:00 - 1994-08-07 18:35:00

When only some nodes are loaded, to_dataframe() and to_dataset() only contain columns for those nodes — the rest are graph-connected but data-free:

network_subset.to_dataframe(sel="WaterLevel").head()

node	134	203
time
1994-08-07 16:35:00.000	194.074997	194.852997
1994-08-07 16:36:01.870	194.074997	194.853577
1994-08-07 16:37:07.560	194.074997	194.853760
1994-08-07 16:38:55.828	194.074997	194.853836
1994-08-07 16:39:55.828	194.074997	194.853867

Inspecting the Network

Available quantities

network.quantities

['WaterLevel', 'Discharge']

Underlying graph

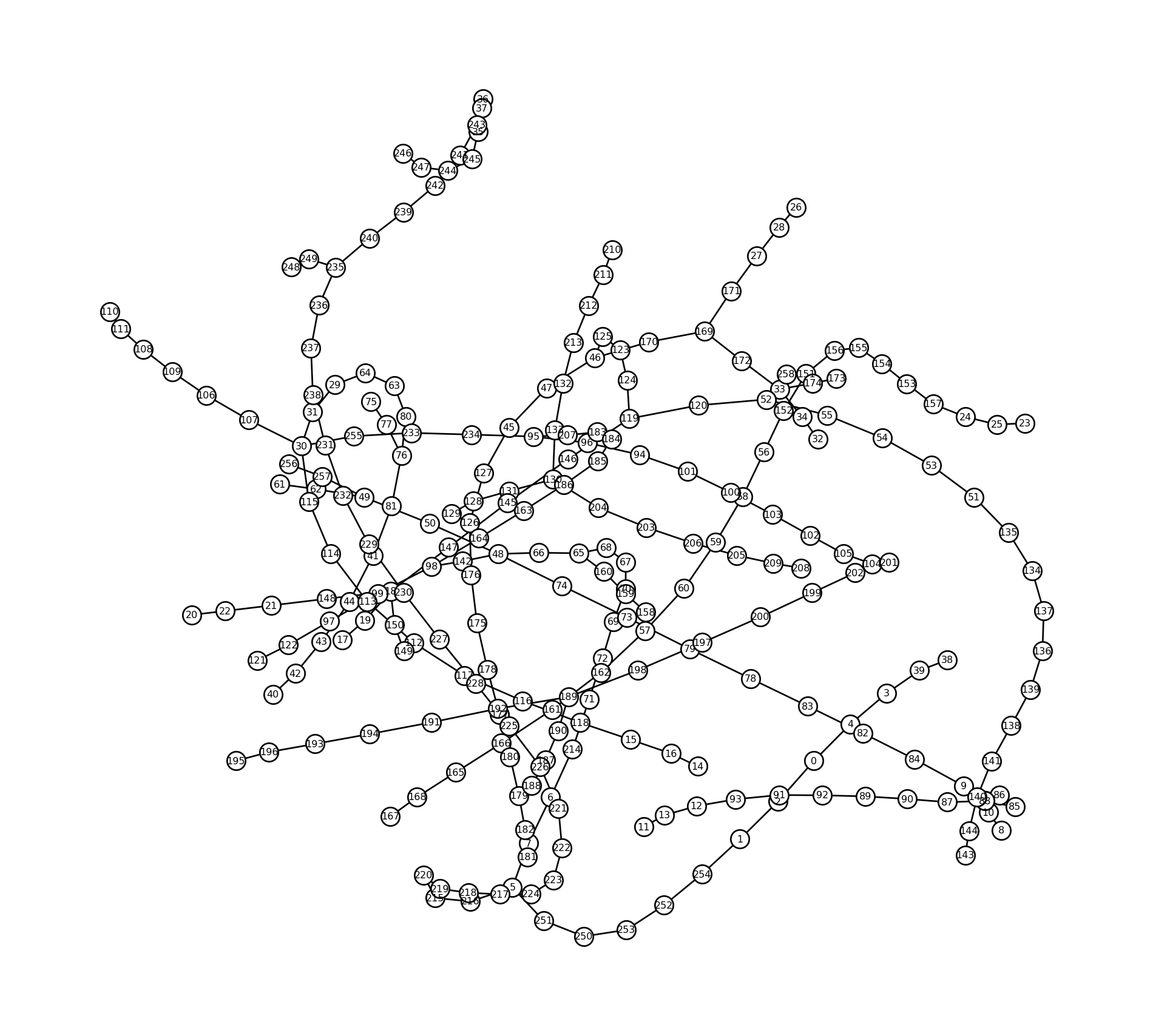

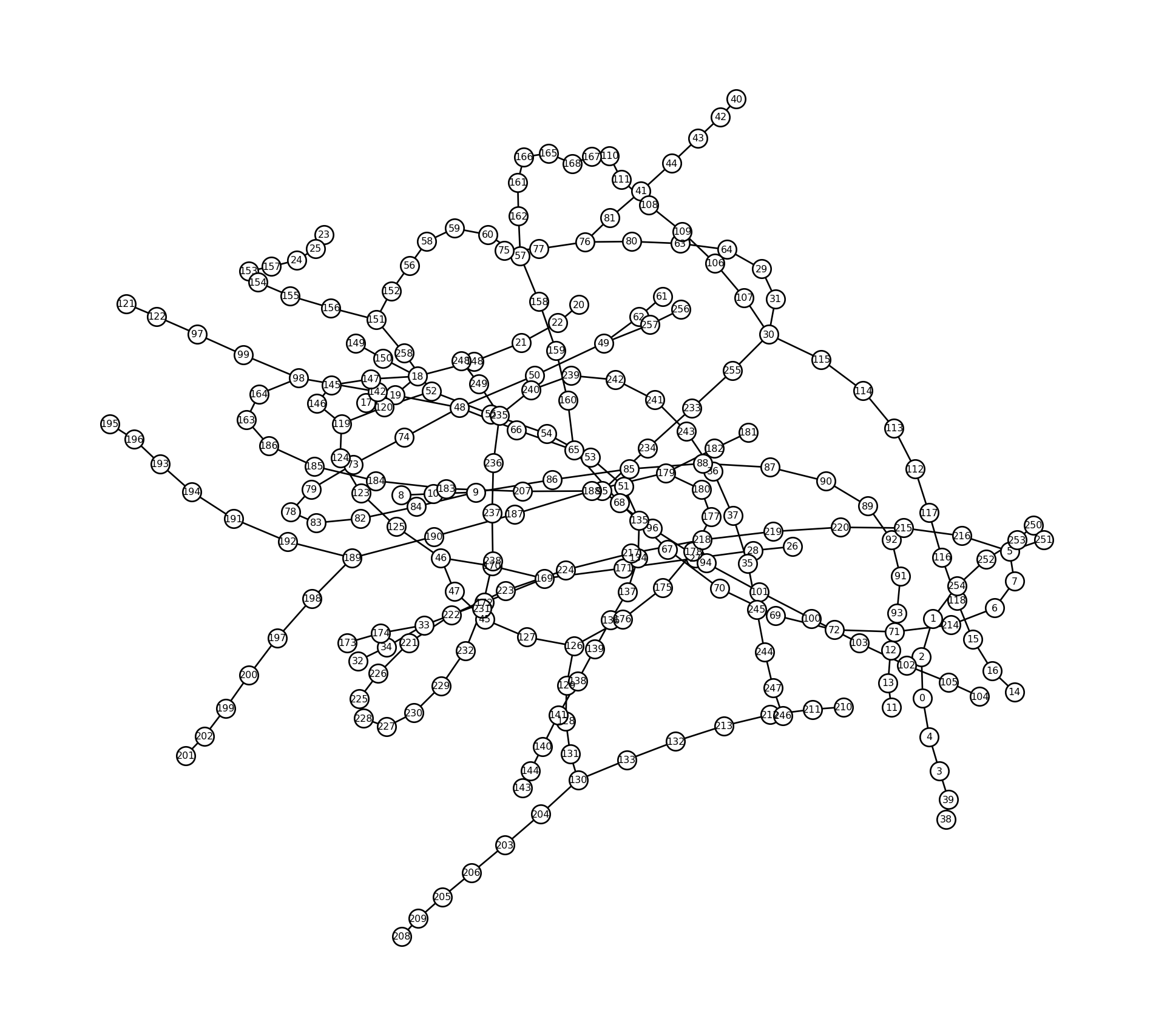

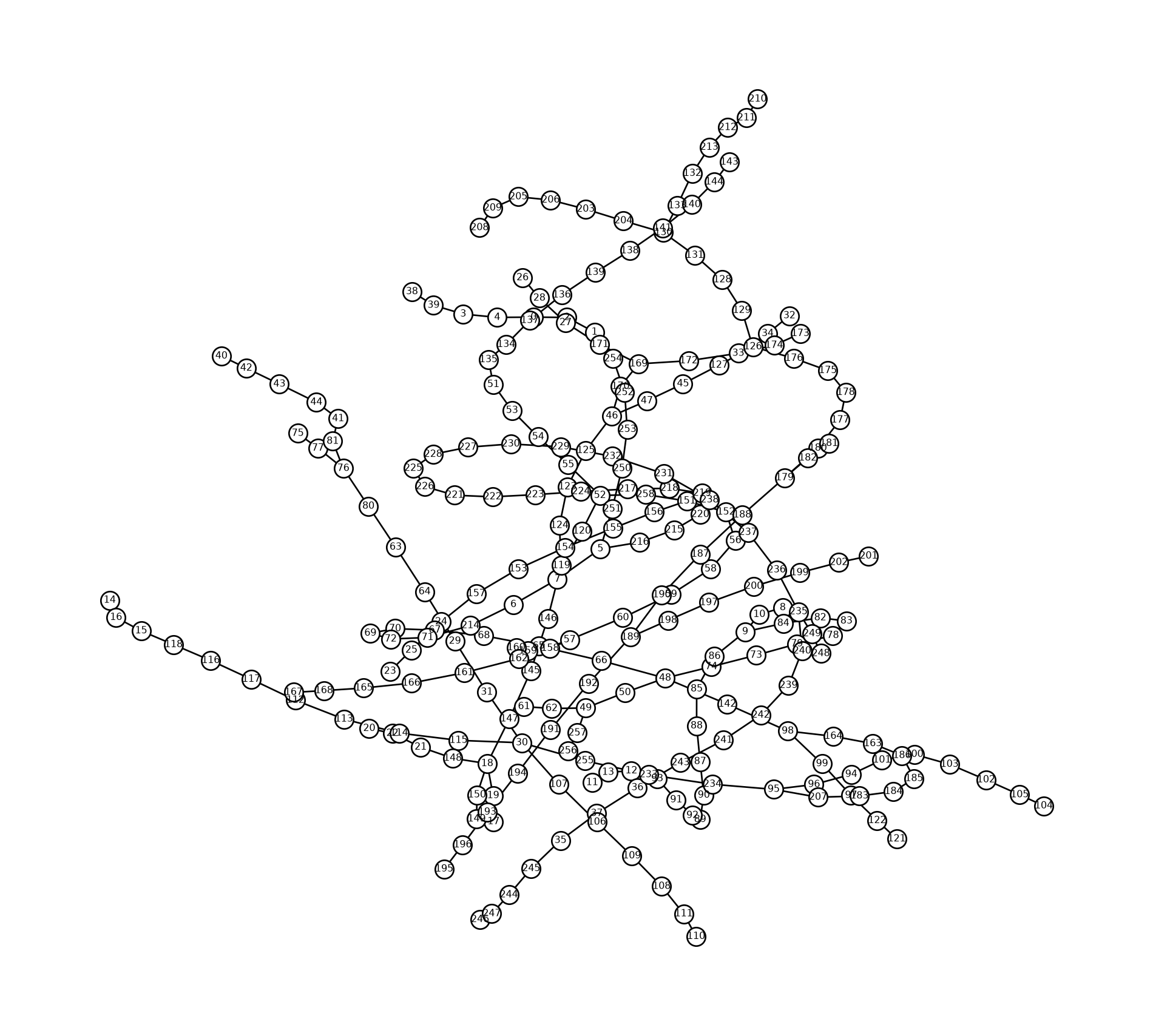

The network exposes a networkx.Graph so you can use any NetworkX algorithm or plotting function directly:

import networkx as nx
import matplotlib.pyplot as plt

fig, ax = plt.subplots(figsize=(10, 9), layout="tight")
nx.draw(network.graph, ax=ax, **plot_kwargs)
plt.show()

Timeseries data

# Multi-index DataFrame: columns are (node, quantity)
network.to_dataframe().head()

node	0	1	2	3	4	5	6	7	8	9	...	249	250	251	252	253	254	255	256	257	258
quantity	WaterLevel	WaterLevel	Discharge	WaterLevel	Discharge	WaterLevel	WaterLevel	Discharge	WaterLevel	WaterLevel	...	Discharge	WaterLevel	Discharge	WaterLevel	Discharge	Discharge	Discharge	WaterLevel	Discharge	Discharge
time
1994-08-07 16:35:00.000	195.441498	194.661499	0.000006	195.931503	0.000004	193.550003	193.550003	0.000000	195.801498	195.703003	...	0.000005	194.511505	0.000013	194.581497	0.000003	0.000002	0.000031	193.779999	0.0	0.0
1994-08-07 16:36:01.870	195.441605	194.661621	0.000006	195.931595	0.000004	193.550140	193.550064	0.000008	195.801498	195.703171	...	0.000005	194.511841	0.000010	194.581497	0.000003	0.000002	0.000031	188.479996	0.0	0.0
1994-08-07 16:37:07.560	195.441620	194.661728	0.000006	195.931625	0.000004	193.550232	193.550156	0.000016	195.801498	195.703400	...	0.000005	194.511795	0.000010	194.581497	0.000003	0.000002	0.000033	188.479996	0.0	0.0
1994-08-07 16:38:55.828	195.441605	194.661926	0.000006	195.931656	0.000004	193.550369	193.550308	0.000022	195.801498	195.703690	...	0.000005	194.511581	0.000009	194.581497	0.000003	0.000002	0.000037	188.479996	0.0	0.0
1994-08-07 16:39:55.828	195.441605	194.661972	0.000006	195.931656	0.000004	193.550430	193.550369	0.000024	195.801498	195.703827	...	0.000005	194.511505	0.000009	194.581497	0.000003	0.000002	0.000039	188.479996	0.0	0.0

5 rows × 259 columns

# Select a single quantity
network.to_dataframe(sel="WaterLevel").head()

node	0	1	3	5	6	8	9	11	12	14	...	235	237	239	241	244	246	248	250	252	256
time
1994-08-07 16:35:00.000	195.441498	194.661499	195.931503	193.550003	193.550003	195.801498	195.703003	197.072006	196.962006	197.351501	...	196.272995	196.113007	196.322006	196.401993	196.851501	196.891495	196.601501	194.511505	194.581497	193.779999
1994-08-07 16:36:01.870	195.441605	194.661621	195.931595	193.550140	193.550064	195.801498	195.703171	197.072006	196.962051	197.351501	...	196.272995	196.113007	196.322037	196.402023	196.851501	196.891495	196.601501	194.511841	194.581497	188.479996
1994-08-07 16:37:07.560	195.441620	194.661728	195.931625	193.550232	193.550156	195.801498	195.703400	197.072006	196.962082	197.351501	...	196.272995	196.113007	196.322052	196.402039	196.851501	196.891495	196.601501	194.511795	194.581497	188.479996
1994-08-07 16:38:55.828	195.441605	194.661926	195.931656	193.550369	193.550308	195.801498	195.703690	197.072006	196.962112	197.351501	...	196.272995	196.113007	196.322067	196.402069	196.851501	196.891495	196.601501	194.511581	194.581497	188.479996
1994-08-07 16:39:55.828	195.441605	194.661972	195.931656	193.550430	193.550369	195.801498	195.703827	197.072006	196.962128	197.351501	...	196.272995	196.113007	196.322067	196.402069	196.851501	196.891495	196.601501	194.511505	194.581497	188.479996

5 rows × 130 columns

Looking up node IDs

After construction, nodes are re-labelled as integers. Use find() to go from original coordinates to the integer ID and recall() to go back.

Tip

When creating NodeObservation objects for skill assessment you generally do not need to call find(). You can pass the original string ID as node=, and NetworkModelResult will resolve it for you during matching. For breakpoints, use at=(reach, distance) rather than node=. See Skill assessment workflow for details.

# Look up a named node by its original id
node_id = network.find(node="117")
print(f"Node '117' → integer id {node_id}")

# Recover the original label
print(network.recall(node_id))

Node '117' → integer id 51
{'node': '117'}

# Look up a break point by reach + chainage
bp_id = network.find(reach="94l1", distance=21.285)
print(f"Break point (94l1, 21.285) → integer id {bp_id}")
print(network.recall(bp_id))

Break point (94l1, 21.285) → integer id 245
{'reach': '94l1', 'distance': 21.2852238539205}

# Node batch lookup
ids = network.find(node=["20", "113", "38"])
print(ids)

[76, 40, 15]

# Reach lookup
ids = network.find(reach="58l1", distance="start")
print(ids)
ids = network.find(reach="58l1", distance=[51.456, 77.185])
print(ids)
ids = network.find(reach="58l1", distance=["start", 77.185])
print(ids)

57
[159, 160]
[57, 160]

Skill assessment workflow

1. Wrap the Network in a NetworkModelResult

import modelskill as ms
from modelskill.model.network import NetworkModelResult

mr = NetworkModelResult(network, name="MyModel", item="WaterLevel")
mr

<NetworkModelResult>: MyModel

2. Create NodeObservations and compute skill

NodeObservation accepts a file path directly; the observation name is taken from the filename.

The at= argument can be specified in three ways, depending on what information you have at hand.

MIKE 1D vocabulary vs the modelskill API

In MIKE 1D, “nodes” are the named connection points in the 1D network (manholes, junctions, outfalls) while “reaches” are the pipe or channel segments that connect them. The modelskill API uses NodeObservation more broadly: the at= argument accepts either a node ID (int or string) or a (reach_id, distance) breakpoint tuple that identifies a specific chainage along a reach. If you only need a reach-level quantity (uniform across the reach), use ReachObservation with reach= instead.

Option A — original string alias

Pass the original node identifier from the source format (e.g. the Res1D node name) as a plain string. The NetworkModelResult resolves it to the correct integer ID at match time, so you do not need to call network.find() yourself:

obs_1 = ms.NodeObservation(path_to_sensor_data_1, at="78")
obs_2 = ms.NodeObservation(path_to_sensor_data_2, at="46")

cc = ms.match(obs=[obs_1, obs_2], mod=mr)
cc.skill()

	n	bias	rmse	urmse	mae	cc	si	r2
observation
network_sensor_1	109	0.700685	0.810246	0.406865	0.724734	0.726882	0.002095	-2.245889
network_sensor_2	80	0.430548	0.462543	0.169040	0.431153	0.550352	0.000873	-4.548691

Note

Resolution happens inside ms.match(). If the string is not found in the network’s alias map a ValueError is raised with a clear message indicating which alias could not be resolved.

Option B — breakpoint by `(reach, distance)` tuple

When your observation sits at a chainage along a reach rather than at a named junction node, you can use the at argument and pass a (reach_id, distance) tuple. The NetworkModelResult looks up the corresponding breakpoint at match time:

obs_bp = ms.NodeObservation(path_to_sensor_data_1, at=("94l1", 21.285))

cc = ms.match(obs=obs_bp, mod=mr)
cc.skill()

The tuple form is equivalent to calling network.find(reach="94l1", distance=21.285) beforehand and is resolved during matching.

Chainage tolerance

Breakpoint distances are matched with a tolerance of 1 × 10⁻³ (i.e. ±0.001 in whatever distance units the network uses). This means that small floating-point discrepancies between the distance you type and the value stored in the network are handled gracefully. If no breakpoint falls within that tolerance a ValueError is raised.

3. Using ReachObservation for reach-uniform quantities

Some physical quantities — such as discharge in a pipe — are conceptually uniform across the whole reach, even though the model stores values at individual breakpoints along the reach. ReachObservation lets you associate a timeseries with a named reach without having to identify a specific breakpoint.

When matched against a NetworkModelResult, modelskill automatically extracts model data from an arbitrary breakpoint that belongs to the given reach and verifies that all breakpoints on the reach carry equivalent values.

obs_q = ms.ReachObservation(path_to_sensor_data_1, reach="94l1", name="Q_94l1")
obs_q

<ReachObservation>: Q_94l1
Time: 1994-08-07 16:35:06.721400 - 1994-08-07 18:35:01.353900
Quantity:  []

Pass the observation to ms.match() exactly as you would a NodeObservation. modelskill resolves which breakpoint to use automatically:

mr_q = NetworkModelResult(network, name="MyModel", item="Discharge")
cc_q = ms.match(obs=obs_q, mod=mr_q)
cc_q.skill()

	n	bias	rmse	urmse	mae	cc	si	r2
observation
Q_94l1	109	-194.191817	194.192311	0.438201	194.191817	0.563474	0.002256	-186449.466671

Note

Use ReachObservation when your measured quantity is representative of the whole reach (e.g. discharge, which is constant along a reach in steady flow). If you need to compare a quantity that varies spatially along the reach (e.g. water level at a specific chainage), use a NodeObservation with a (reach, distance) tuple instead (see Option B above).

Development

Custom network formats

In case you have your network data in a format that is not included in Building a Network, you can assemble a Network object by subclassing the abstract base classes NetworkNode and NetworkReach.

NetworkNode requires three properties: id, data, and boundary. NetworkReach requires four: id, start, end, and breakpoints.

NetworkReach.length is optional and defaults to None. Reach length matters in some domains (rivers, sewer networks) and not in others (link-node water distribution models), so override it only where a length exists. Where it is left undefined, the reach contributes an edge with length=None to network.graph, which keeps length-weighted graph algorithms from quietly treating the reach as free. Nothing else in modelskill reads the length — matching and extraction work from break point distances alone.

The following is a simple implementation example:

import pandas as pd
import numpy as np
from typing import Any
from modelskill.network import NetworkNode, NetworkReach, Network


class ExampleNode(NetworkNode):
    """Node backed by an in-memory DataFrame, e.g. model output."""

    def __init__(self, node_id: str, data: pd.DataFrame):
        self._id = node_id
        self._data = data

    @property
    def id(self) -> str:
        return self._id

    @property
    def data(self) -> pd.DataFrame:
        return self._data

    @property
    def boundary(self) -> dict[str, Any]:
        return {}


class ExampleReach(NetworkReach):
    """Reach connecting two nodes with a given length."""

    def __init__(
        self, reach_id: str, start: NetworkNode, end: NetworkNode, length: float,
        breakpoints: list | None = None,
    ):
        self._id = reach_id
        self._start = start
        self._end = end
        self._length = length
        self._breakpoints = breakpoints or []

    @property
    def id(self) -> str:
        return self._id

    @property
    def start(self) -> NetworkNode:
        return self._start

    @property
    def end(self) -> NetworkNode:
        return self._end

    @property
    def length(self) -> float:
        return self._length

    @property
    def breakpoints(self) -> list:
        return self._breakpoints

Tip

The three abstract properties that every NetworkNode subclass must implement are id, data and boundary. If boundary is not relevant for your use case, define the property to return an empty dictionary, as in the example above. Similarly, a NetworkReach with no intermediate points can return an empty breakpoints list, and one with no meaningful length can leave the length property out altogether.

from modelskill.network import Network

# df1, df2 and df3 are DataFrame objects that are loaded in memory
node_s1 = ExampleNode("sensor_1", df1)
node_s2 = ExampleNode("sensor_2", df2)
node_s3 = ExampleNode("sensor_3", df3)

reach1 = ExampleReach("r1", node_s1, node_s2, length=500.0)
reach2 = ExampleReach("r2", node_s2, node_s3, length=300.0)

network = Network(reaches=[reach1, reach2])
network

<Network>
Reaches: 2
Nodes: 3
Quantities: ['WaterLevel']
Time: 1994-08-07 16:00:00 - 1994-08-07 18:59:00

Adding break points along a reach

Break points represent intermediate chainage locations on a reach (e.g. cross-sections). Subclass ReachBreakPoint the same way — implement id (a (reach_id, distance) tuple) and data:

from modelskill.network import ReachBreakPoint


class ExampleBreakPoint(ReachBreakPoint):
    def __init__(self, reach_id: str, distance: float, data: pd.DataFrame):
        self._id = (reach_id, distance)
        self._data = data

    @property
    def id(self):
        return self._id

    @property
    def data(self):
        return self._data


# df4 is a DataFrame object that has been loaded in memory
bp = ExampleBreakPoint("r1", 200.0, df4)
reach1 = ExampleReach("r1", node_s1, node_s2, length=500.0, breakpoints=[bp])
reach2 = ExampleReach("r2", node_s2, node_s3, length=300.0)
network = Network(reaches=[reach1, reach2])

Building a Network

From a network result file

EPANET companion files

Selective loading

Inspecting the Network

Available quantities

Underlying graph

Timeseries data

Looking up node IDs

Skill assessment workflow

1. Wrap the Network in a NetworkModelResult

2. Create NodeObservations and compute skill

Option A — original string alias

Option B — breakpoint by (reach, distance) tuple

3. Using ReachObservation for reach-uniform quantities

Development

Custom network formats

Adding break points along a reach

See also

Option B — breakpoint by `(reach, distance)` tuple
