Generic dfs processing

Tools and methods that applies to any type of dfs files.

import matplotlib.pyplot as plt
import mikeio
import mikeio.generic

Concatenation

Take a look at these two files with overlapping timesteps.

t1 = mikeio.read("../data/tide1.dfs1")
t1
<mikeio.Dataset>
dims: (time:97, x:10)
time: 2019-01-01 00:00:00 - 2019-01-03 00:00:00 (97 records)
geometry: Grid1D (n=10, dx=0.06667)
items:
  0:  Level <Water Level> (meter)
t2 = mikeio.read("../data/tide2.dfs1")
t2
<mikeio.Dataset>
dims: (time:97, x:10)
time: 2019-01-02 00:00:00 - 2019-01-04 00:00:00 (97 records)
geometry: Grid1D (n=10, dx=0.06667)
items:
  0:  Level <Water Level> (meter)

Plot one of the points along the line.

plt.plot(t1.time,t1[0].isel(x=1).values, label="File 1")
plt.plot(t2.time,t2[0].isel(x=1).values,'k+', label="File 2")
plt.legend()

mikeio.generic.concat(infilenames=["../data/tide1.dfs1",
                                   "../data/tide2.dfs1"],
                     outfilename="concat.dfs1")
  0%|          | 0/2 [00:00<?, ?it/s]100%|██████████| 2/2 [00:00<00:00, 769.46it/s]
c = mikeio.read("concat.dfs1")
c[0].isel(x=1).plot()
c
<mikeio.Dataset>
dims: (time:145, x:10)
time: 2019-01-01 00:00:00 - 2019-01-04 00:00:00 (145 records)
geometry: Grid1D (n=10, dx=0.06667)
items:
  0:  Level <Water Level> (meter)

Difference between two files

Take difference between two dfs files with same structure - e.g. to see the difference in result between two calibration runs

fn1 = "../data/oresundHD_run1.dfsu"
fn2 = "../data/oresundHD_run2.dfsu"
fn_diff = "oresundHD_difference.dfsu"
mikeio.generic.diff(fn1, fn2, fn_diff)
  0%|          | 0/5 [00:00<?, ?it/s]100%|██████████| 5/5 [00:00<00:00, 2818.37it/s]
_, ax = plt.subplots(1,3, sharey=True, figsize=(12,5))
da = mikeio.read(fn1, time=-1)[0]
da.plot(vmin=0.06, vmax=0.27, ax=ax[0], title='run 1')
da = mikeio.read(fn2, time=-1)[0]
da.plot(vmin=0.06, vmax=0.27, ax=ax[1], title='run 2')
da = mikeio.read(fn_diff, time=-1)[0]
da.plot(vmin=-0.1, vmax=0.1, cmap='coolwarm', ax=ax[2], title='difference');

Extract time steps or items

The extract() method can extract a part of a file:

  • time slice by specifying start and/or end
  • specific items
infile = "../data/tide1.dfs1"
mikeio.generic.extract(infile, "extracted.dfs1", start='2019-01-02')
e = mikeio.read("extracted.dfs1")
e
<mikeio.Dataset>
dims: (time:49, x:10)
time: 2019-01-02 00:00:00 - 2019-01-03 00:00:00 (49 records)
geometry: Grid1D (n=10, dx=0.06667)
items:
  0:  Level <Water Level> (meter)
infile = "../data/oresund_vertical_slice.dfsu"
mikeio.generic.extract(infile, "extracted.dfsu", items='Salinity', end=-2)
e = mikeio.read("extracted.dfsu")
e
<mikeio.Dataset>
dims: (time:2, element:441)
time: 1997-09-15 21:00:00 - 1997-09-16 00:00:00 (2 records)
geometry: DfsuVerticalProfileSigmaZ (441 elements, 550 nodes)
items:
  0:  Salinity <Salinity> (PSU)

Scaling

Adding a constant e.g to adjust datum

ds = mikeio.read("../data/gebco_sound.dfs2")
ds.Elevation[0].plot();

ds['Elevation'][0,104,131].to_numpy()
np.float32(-1.0)

This is the processing step.

mikeio.generic.scale("../data/gebco_sound.dfs2",
                     "gebco_sound_local_datum.dfs2",
                     offset=-2.1
                     )
  0%|          | 0/1 [00:00<?, ?it/s]100%|██████████| 1/1 [00:00<00:00, 1002.70it/s]
ds2 = mikeio.read("gebco_sound_local_datum.dfs2")
ds2['Elevation'][0].plot()

ds2['Elevation'][0,104,131].to_numpy()
np.float32(-3.1)

Spatially varying correction

import numpy as np
factor = np.ones_like(ds['Elevation'][0].to_numpy())
factor.shape
(264, 216)

Add some spatially varying factors, exaggerated values for educational purpose.

factor[:,0:100] = 5.3
factor[0:40,] = 0.1
factor[150:,150:] = 10.7
plt.imshow(factor)
plt.colorbar();

The 2d array must first be flipped upside down and then converted to a 1d vector using numpy.ndarray.flatten to match how data is stored in dfs files.

factor_ud = np.flipud(factor)
factor_vec  = factor_ud.flatten()
mikeio.generic.scale("../data/gebco_sound.dfs2",
                     "gebco_sound_spatial.dfs2",
                     factor=factor_vec
                     )
  0%|          | 0/1 [00:00<?, ?it/s]100%|██████████| 1/1 [00:00<00:00, 1168.66it/s]
ds3 = mikeio.read("gebco_sound_spatial.dfs2")
ds3.Elevation[0].plot();

Derived items

Creating derived items from existing items, e.g. current speed from u and v velocities.

from mikeio.generic import DerivedItem

fn = "../data/oresundHD_run1.dfsu"
fn_derived = "oresundHD_speed.dfsu"
mikeio.generic.transform(
    fn,
    fn_derived,
    [
        DerivedItem(
            name="Current speed",
            type=mikeio.EUMType.Current_Speed,
            unit=mikeio.EUMUnit.knot,
            func=lambda x: 1.94 * np.sqrt(x["U velocity"] ** 2 + x["V velocity"] ** 2),
        )
    ],
)

Time average

fn = "../data/NorthSea_HD_and_windspeed.dfsu"
fn_avg = "Avg_NorthSea_HD_and_windspeed.dfsu"
mikeio.generic.avg_time(fn, fn_avg)
  0%|          | 0/66 [00:00<?, ?it/s]100%|██████████| 66/66 [00:00<00:00, 26754.04it/s]
ds = mikeio.read(fn)
ds.mean(axis=0).describe()   # alternative way of getting the time average
Surface elevation Wind speed
count 958.000000 958.000000
mean 0.449857 12.772706
std 0.178127 2.367667
min 0.114355 6.498364
25% 0.373691 11.199439
50% 0.431747 12.984060
75% 0.479224 14.658077
max 1.202888 16.677952
ds_avg = mikeio.read(fn_avg)
ds_avg.describe()
Surface elevation Wind speed
count 958.000000 958.000000
mean 0.449857 12.772706
std 0.178127 2.367667
min 0.114355 6.498364
25% 0.373691 11.199439
50% 0.431747 12.984060
75% 0.479224 14.658077
max 1.202888 16.677952

Quantile

Example that calculates the 25%, 50% and 75% percentile for all items in a dfsu file.

fn = "../data/NorthSea_HD_and_windspeed.dfsu"
fn_q = "Q_NorthSea_HD_and_windspeed.dfsu"
mikeio.generic.quantile(fn, fn_q, q=[0.25,0.5,0.75])
ds = mikeio.read(fn_q)
ds
<mikeio.Dataset>
dims: (time:1, element:958)
time: 2017-10-27 00:00:00 (time-invariant)
geometry: Dfsu2D (958 elements, 570 nodes)
items:
  0:  Quantile 0.25, Surface elevation <Surface Elevation> (meter)
  1:  Quantile 0.5, Surface elevation <Surface Elevation> (meter)
  2:  Quantile 0.75, Surface elevation <Surface Elevation> (meter)
  3:  Quantile 0.25, Wind speed <Wind speed> (meter per sec)
  4:  Quantile 0.5, Wind speed <Wind speed> (meter per sec)
  5:  Quantile 0.75, Wind speed <Wind speed> (meter per sec)

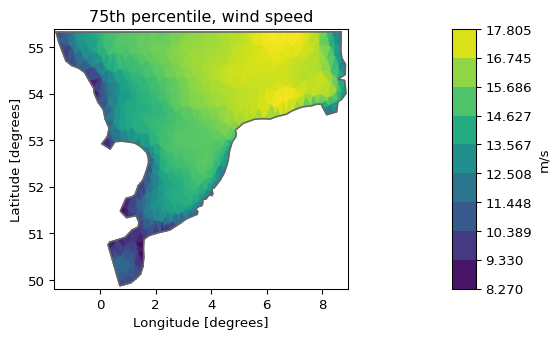

da_q75 = ds["Quantile 0.75, Wind speed"]
da_q75.plot(title="75th percentile, wind speed", label="m/s")

Clean up

import os

os.remove("concat.dfs1")
os.remove("oresundHD_difference.dfsu")
os.remove("extracted.dfs1")
os.remove("extracted.dfsu")
os.remove("gebco_sound_local_datum.dfs2")
os.remove("gebco_sound_spatial.dfs2")
os.remove("Avg_NorthSea_HD_and_windspeed.dfsu")
os.remove(fn_q)
os.remove("oresundHD_speed.dfsu")
